Server MAX Profesyonel
Free standing cabinets
Download Specifications

19"
High quality products
Fits your decoration and environment
Secure and sturdy
Easy to maintenance and high inner volume
High security for unauthorized peoples
High protection for all physical effects
Competitive prices
Excellent passive air ventilation

In 60 countries, thousands of companies are using LMS Data Server Cabinets. ServerMAX protects you technological investments.

57 REASONS to buy LMS Data-ServerMAX Server Cabinets

ADAPTABILITY / FUNCTIONALITY

1. Multi-vendor: It is compatible with all EIA-310 compliant 19" equipment. All type of servers / brands will physically fit in an LMS Data ServerMAX server cabinet.
2. Adjustable mounting depth: 19" mounting angles are adjustable in depth for various mounting depths.
3. Bottom plate: have an extra perforated plate to avoid any insects, mouse etc .... When it is necessary a filter can be integrated there against to dust coming from bottom
4. Reversible doors: Front and rear doors detached and reversed if it is desired for the front door to open from the opposite side of cabinet.
5. Side doors are splited in two: Front part is used for access to cabinet as mentioned above. Other small section is fixed from inside of the cabinet. If any case more ventilation is needed this panel can be vented. Mainly, inner part of this panel is used for housing of cables and power strips.
6. Numbered U positions: provide an easy installation of rack mounted equipment.
7. Vertical mounting rails: with square holes and adjustable in depth.
8. Compliances: UL and cUL with SETT brand name it belongs to LMS Data

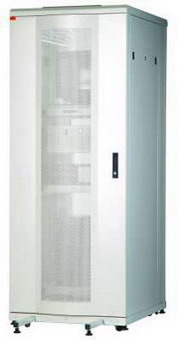

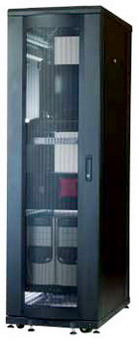

9. There is two colour option for ServerMAX. Black Ral9005 and Light Grey(or white) Ra17035. You can choose if any colour required.
10. Avaliable perpex-plexi front door: Possible to use plexi-perpex front doors instead of vented front door.
11. Ample variety: 4 different heigh: 26U, 36U, 42U, 47U 2 different width: 600mm. and 800mm .
12. Create your own design: ServerMAX cabinets offer our customers the exciting option of customizing the appearence of the racks to match their corporate logo and colour scheme. This high-end product can be made to meet the most exacting specifications. Doors are laser etched and cut in the shape chosen, then powder coated in one of a rainbow of colours. When appearance plays a role hand-in-hand with functionality.

AIR REMOVAL

13. Efficient passive ventilation: New generation servers and networking products need adequate ventilation for proper operations. ServerMAX server cabinets provide efficient passive ventilation because of its vented structure for front and rear doors. Front and rear doors have maximum perforation pattern for high-density cooling that meets or exceeds server manufacturer's ventilation requirements. .
14. Bottom plate is ready with prepunched knock outs for air distribution delivered from raised floor. When airflow comes through bottom/raised floor, the plates on the bottom are removed and provides efficient airflow inside of cabinet
15. There is a fan tray on roof. It is removable easly from the top. When the maintanence of fans are required, it can be reached from top directly without touching to any mounted device or servers.
16. It is possible to put filter on top of the server fan unit.
17. When the passive or fan ventilation is un­efficient, rear door can be replaced with a new rear door but complete with 6ea. fans vertically. It is possible to use rear door as fan tray.

CONVENIENCE

18.Optimized width: ServerMAX d=600mm. Server cabinets are designed to align exactly on standard 600mm. wide floor tiles when bayed together.
19.Generous cable access holes are provided in the roof and base. One on top, one on bottom holes are special LMS Data style cable entries; sliding type with rubber edges.
20.Optimized depth: 1000mm. Today and next generation installation of servers, distribute power and manage cabling are required deeper enclosures. All IT managers is determining how deep to go without sacrificing floor space. Therefore 1000mm. is an optimum depth for comfort cabling, housing servers and loosing space in data centers.
21.Ships fully assembled: ServerMAX enclosures ship fully assembled reducing the time required to install equipment.
22.Simple selection: No need to spend hours choosing parts of cabinet to create a single enclosure. LMS Data has made it easy by handling the details and providing complete cabinet with single part numbers.
23. All in one ServerMAX includes; Casters, Doors, Ground Studs, Levelling feet, Mounting hardware, Roof, Bottom, Side panels, C-rails, Tilt bars, Unloaded fan tray
24. Side doors are spllted In two. Front part is used for access to cabinet as mentioned above. Other small section is fixed from inside of the cabinet. If any case more ventilation is needed this panel can be vented. Mainly, inner part of this panel is used for housing of cables and power strips.
25. Fixing to floor: ServerMAX can easily fixed to the floor when it is necessary. Floor fixing kit is used for this purpose. Please see the accessories for floor fixing kit.

SERVICE ABILITY and AGILITY

26. Quick Release doors: During installation and maintenance of installed equipment, it is often advantageous to remove enclosure doors.
27. Quick Release side doors: During installation and while conducting routine maintenance of installed equipment, it is often advantageous to remove the side panels. Quick release slam latches and lockable locks on the side panels allow for quick and easy access.
28. Double rear doors: Double rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 300mm. of clearance is required behind the enclosure to allow for door swing.
29. Expansion: ServerMAX enclosures can be easily expanded upon to create complete rows of enclosures. With a proper baying kit, please see accessories, all cabinets are bayed easily and quickly.
30. Levelling feet: ServerMAX cabinets are shipped with already assembled levelling feets.
31. Gastor group: ServerMAX cabinets are shipped comlete with castor group. When it is placed in area, by levelling feet are adjusted all the way down and castors are on air. For mobilization castors are used. All castors are heavy duty type.

STRUCTURE, STABILITY and PROTECTION

32. Welded: Bottom of the cabinet is completely welded and closed structure. It is more sturdy and rugged. It protect any physical effects like water, dust, insects etc
33. Welded: Roof of the cabinet is completely welded and closed structure. It is more sturdy and rugged.
34. Lockable doors and side panels. Front and rear doors are lockable with 3 point locking mechanism. It is handle type. Level of security to prevent unauthorized entry, is increased. All doors and side panels are only accessible with a key provided with ServerMAX.
35. Stability: An heavy duty frame design, 2mm. Mounting rails, angles, heavy duty type castor group provide 800 load rating.
36. Anti-tilt bars: As standard, ServerMAX is integral with 2 sliding type tilt bars to make cabinet stable in weight center. Whenever the servers are moved out, tilt bars are drawen out to balance the cabinet weight center.
37. Grounding: All parts have ground studs to provide electrical continuity
38. Heavy duty vertical frames: Instead of 4ea. vertical profiles, ServerMAX cabinets are 6ea.(3ea.in left+3ea.in right) main vertical profiles that gives extra stability for heavy loads.
39. More C rails: Instead of 6ea. There are 8 horizantal C rails in depth for extra stability. .
40. Reinforced bottom: Bottom have reinforced with horizantal profile in width and depth for extra stability.
41. Rounded aesthetic monoblok front door: Front door is heavy duty type monoblock perforated and welded structure. It's shape is rounded in front that looks really matter and looks aesthetic.
42. Load carrying capacity: 800 kg
43. Surface Treatment: Fosfat coating, oil remove and passivation.
44. Material Thicknesses: Roof, Bottom, Vertical main frames, C-rails, 19" mounting angles, profies and all frames are 2mm. thickness. Sturdy and rugged steel construction.
45. Paint: Electrostatic powder coating with an automatic process.
46. Easy to dismantle and assemby: The rigidly welded frame construction can be dismantled and assembles easily without any special tools. Thus, narrow doors, staircases and lifts are no problem.
47. High quality Locks from Emka Germany

CABLE ACCESS - CABLE MANAGEMENT - POWER DISTRIBUTION

48. Bottom plate has special cable entry. It is completely closed and sliding type with rubber edges. Cables are entered and fixed. It protects the cable and no any space on the bottom.
49. Top case has also same type special cable entry. It is completely closed and sliding type with rubber edges. Cables are entered and fixed. It protects the cable and no any space on the bottom.
50. Housing for cabling: The cabinet itself has enough housing for vertical cable management at back. For 600x1 000 cabinet, cable rings are used for cable management. For 800x1 000 cabinets there is special vertical cable management panels-lefl&right with cover plate for hiding and protecting the cables. They all allow customers to easily route, manage, and access large numbers of data cables even while an enclosure is loaded with rack mount equipment and bayed in a row.
51. Rear Power distribution housing at back of the cabinet provide easy access to multiple receptacles. Vertical power distribution strips can easily be mounted in that space. This housing never interfer with equipment or take any valuable U space. This provides increased accessibility to receptacles and allows customers to support more power cords within the enclosure. Power strips are in the length of cabinets, 26U, 36U, 42U, 47U.

MORE VOLUME / width=800mm

52. More volume: It provides more efficient cooling and more professional cabling.
53. Width=800mm. ServerMAX cabinet has all features mentioned above. Besides that it has extra features as below.
54. Front panel at left and right: Front panels are used to hid unwanted cable view. If server cabinet is used networking also in front, cable management is needed. LMS Data cable rings are used to fix on this panel for cable management. It have cable access holes for patch cord to pass to back of cabinet.
55. Vertical cable management panels can be used at rear of the cabinet for professional cabling and hiding the power cables also.
56. Extra Housing for cabling and power distribution: There is extra housing for vertical cable management panels in left and right together with vertical power strips. konulabilir.
57. Ample variety of accessories: Heavy duty fixed shelves, sliding shelves, fans, cooling units, vertical cable managements, cable rings, organisers, trays, plinth, etc

NOTE :
Please define your colour with your order. Unless noted otherwise it is delivered as black Ra19005.
For 2, 3, 4 compartment server cabinet, please contact with sales department.
