An excellent solution for workshops, factories, processes, warehouse and laboratuaries
 19"
Fits your decoration and environment
Competitive prices
Secure and sturdy
Easy to maintenance and high inner volume
Dust proof
Noise proof
Air circulation with vented filters

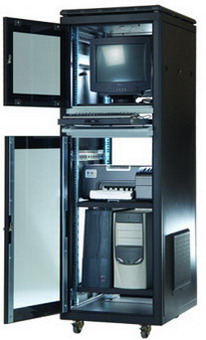

PCCASE is ideal for office, factory, workshop, storage, store, gas stations and laboratuaries ..... as server housing. It protects your servers and devices against dust, humidity, hoVcold air but most important that against unauthorized peoples. Servers, all kind of PS's, monitors, keyboards, UPS's, switches and networking products can easily be placed in it.
It ergonomy provides the keyboards are in hands level and monitor is at eyes level.
FEATURES:
It is 3 section.
1st. Compartment: Screen section
2nd. Compartment: Keyboard section
3rd. Compartment: Device section 19"
All compartments are lockable.
Middle (2 nd) compartment contain sliding shelf for keyboard usage
Bottom (3 rd) compartment contain 19" rail that is possible to use all standart accessories to mount all kind of devices. Printers, UPS, Server or any LAN/WAN devices ....

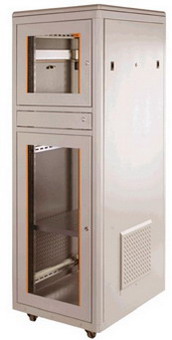

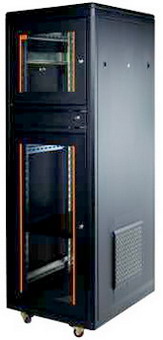

Colour: Ral 9005 black or Ral7035 white.
Both side doors are lockable, removable, and openable.
Side doors have filtered and vented air circulation trays that allow air circulation or air entry.
It is possible to use together with cooling fans and also have filtered and vented tray on top that allow air circulation.
Boltom section have two option. Glass door or solid metal door.
PCCASE cabinets match all features that have defined in the previous pages for UNIVERSALLINE.
PCCSASE36 |
36U 3 sectioned Rack Cabinet width=600mm. Depth=800m. Height=1800mm. Bottom section is complete with smoked shatterproof - secure glass. |
PCCASE26M |
36U 3 sectioned Rack Cabinet width=600mm. Depth=800m. Height=1800mm. Bottom section is complete with solid metal door. |
width = 600mm. Depth = 800mm. |
ORDER NO. |
U
(45.45mm) |
H
Inner Height (mm) |
H
Outer Height (mm) |
PCCASE36 |
36 |
1629,4 |
1744,4 |
PCCASE36M |
36 |
1629,4 |
1744,4 |
NOTE
Please define your colour with your order."Black-RaI9005, White-RaI7035". Unless noted otherwise it is delivered as black Ra19005. |
