Flat pack cabinets provides an economic solution for wall mount mini-cabinets. The SOHO line features a modular, sturdy and compact design, ideal installation for,
 Offices
Computer Aided Classes
Schools
Government Offices
Hotels
Branch Offices
REDUCE
70% SHIPMENT
50% LABOUR COSTS
Packaging:
Unit comes in a FLAT PACKAGE, minimum assembly required..
Load carrying capacity: 30kg.
STANDARDS
ISO9001:2000
19” mounting to IEC 297-1
Overall cabinet dimensions to IEC 297-2
COMPLIANCES
UL AND cUL
FEATURES
Easy to access
Front door: features a full-length smoked and shatterproof glass door with integral locking mechanism.
Rear door: removable with 4 screws.
Cable access
Pre-punched two (2) brush opening, one on top, and one on bottom. Removable rear cable access panel.

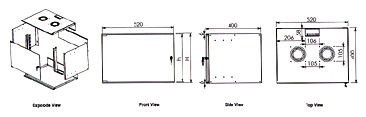

Construction
Rigid frame construction in steel sheet, rapidly dismantled per 3 screw per corner
Top base is vented, pre-punched holes are available for top mount cooling system.
19” mounting angles (front/2ea. And back/2ea) allow for flexible configuration and adjustable in depth.
Extensive range of accessories.
|
