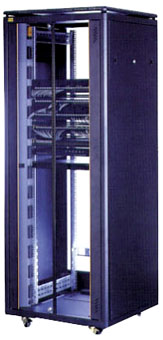

Lx Range Cabinets
Floorstanding 800 x 800mm Cabinets
Download Specifications

LX Range cabinets match all features that have been defined in the previous pages.

Moreover, JUMBO series provide more comfort for cable management and maximum cable entry.
Effective, functional and smart cable management system simplifies the installer’s needs. It enables maximum utilization of floor space, space saving mix of active and passive equipment.
It is designed to offer unrivalled accessibility for high density cabling and fibre installations.
Standard delivery configuration is 2 opening front doors.
Standard delivery configuration is 2 opening rear doors provide space saving in room.
As an option, front door could be single opening, reinforced with metal frame.
It is compatible with all accessories.

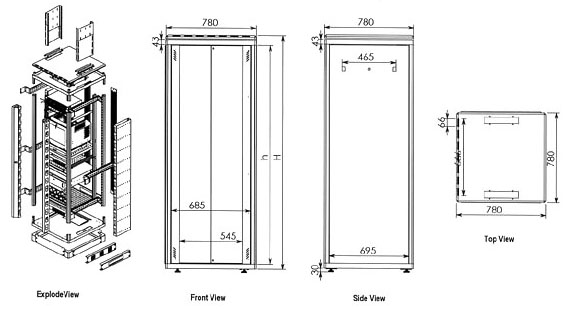

Standard dimensions:
Width – 800mm.
Depth – 800mm.

In addition to standard Universal Line cabinets, there is 2ea. cable entry with brush on top and 2ea. cable entry with brush on bottom.

STANDARDS：

ISO9001:2000
19” mounting to IEC 297-1
Overall cabinet dimensions to IEC 297-2

COMPLIANCES:
UL AND cU

LX Range series
SPECIAL ACCESSORIES for LX Range

VERTICAL CABLE MANAGEMENT PANEL (left + right)
It is designed to manage large patch cable bundles in front of the cabinet. It is installed through the height of the cabinet, and each U dimension, there is a hole to pass horizontal patch cables on vertical axis.
There is spring hinged cover in front of the vertical cable management panel integral with slam latch.
The cover protects and hides all cable bundles.
When it is closed, its looks really matter and provide a professional look.
Besides that, it reduces labour costs by 20% and saves time.

VERTICAL CABLE MANAGEMENT TRUNKING
It is designed to carry large cable bundles through the vertical axis of the cabinet.
From top to bottom, it is continuous with the height of cabinet. Bottom edge of the trunking fit into the cabinet bottom cable entry, top edge of the trunking fit into the cabinet top cable entry. It has holes for cable access for horizontal axis.
It is punched in a shape to tie the cables.
Since it has a sliding cover on the trunking, cable bundles are hidden and protected. When it is closed, its looks really matter and provide a professional look.

TELESCOPIC CABLE TRUNKING
It is designed to protect and hide cable bundles coming from the ceiling. Since the height between ceiling and cabinet isn’t known, it is manufactured as telescopic to fit all dimensions.
There is a cover for it. When it is closed, its looks really matter and provide a professional look.
