SOHO PANO
SOHOline wall mounting enclosures
Download Specifications

Provide an economic solution for electric, telecommunication cabling installations. It is used mainly for housing the electrical device elements, automation systems and many multipurpose applications for mechanical systems also.

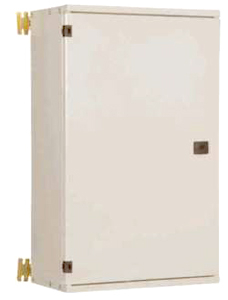

This series is a range of wall mounted enclosures used in offices, factories or any places for horizantal segments where a reduced amount of space is required. Again the aesthetics creating a pleasing and professional look. Attention to styling with light grey Ral7035 for both metal front door or glass front door with left and right metal frames mean that enclosures can be deployed in the most demanding of office environments when looks really matter. Optimal mounting, hinging and panel and device mounting arrangements create a variety of equipment mounting an access arrangements. This allow the LMS Data SOHOLINE WALL MOUNTING ENCLOSURES to be used in almost all locations. Completely standart LMS Data SOHOLINE WALL MOUNTING ENCLOSURES wall mounting cabinet is delivered as a single eclosure and assembled.

FEATURES

Height=300(333), 400(422), 500(557), 600(647)mm. %7-10 more space ..... Written dimensions in "( )" are manufacturing dimensions.
Complete with 4ea. Wall mounting bracket
Grounding screws are fixed on all parts for contuniunity.

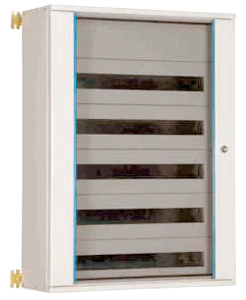

Reinforced glass door with left and right metal frames, lockable, removable C/w decorative trims.
Changeable front door left to right or reverse.
Material thickness:1.5mm.
Galvanised mounting plate t=2mm.
Easy locking mechanism for cover plates by klips
Cable climping profile on front door.
Rubber edged sliding cover mechanism for cable access at top and bottom.
Self locking type sturdy structure and rugged.
Multipurpose usage.
Wide range and variaty in dimensions.
Multiple cable entry points on top (1 or 2ea) and bottom(1 or 2ea), provide maximum versatility. There is a rubberedge sliding cover mechanism that protects and fix the cables.
Double locking mechanism on front door over 600mm. in height.
Easy access and professional cable management.
font> Load Carrying Capacity: 80 kg

Standards : IS0 9001:2000
Surface Treatment : Surface treatment is processed with oil removing and phospat coating.
Painting : Electrostatic powder coating is processed in full automatic painting system. Standard colour is Ral7035 wrinkle but possible with Ral7032 or Ral9005
Quality Certificates of Painting : ISO 9001, ISO 2178, ISO 2813, ISO 6272, ISO 8130-5, ISO 8130-3.
Sheet steel : "DIN EN 10130 - 99 Eregli DC-01 6112, 7122" Brandnarne:Ereğli
Glass: Secure & tempered
Colour Of Glass: Smoked glass and 4mm. thickness. Brandname: Şişecam
Fasteners: All steel and have capacity 1000kg/each. All fasteners are used as same as in aviation plants
Locks & Hinges : German made. Brandname:EMKA
Sealing gasket : German made. Brandname:EMKA Fixing units, screws, nuts etc ... are galvanised properly according to regulations
Civatalar: Teknik şartnamelere uygun olarak galvanizlenmiştir.
IP Protection: IP41. All SOHO PANO cabinets should be improved to IP54 level. Please contact with sales department.
Well Packaged : Shrinked plastic with inner surface and outside is covered by high density cardboard Corners are supported with sytrapor.
