Multi-Vendor Server Rack
The SX Range server racks are suitable for office equipment room and computer room installation.
Attention to styling with attractive colours black Ral9005 or Ral7035 with a perforated door /and/or smoked glass door reinforced with full metal frames mean that cabinets can be deployed in the most demanding of office environments where looks really matter.

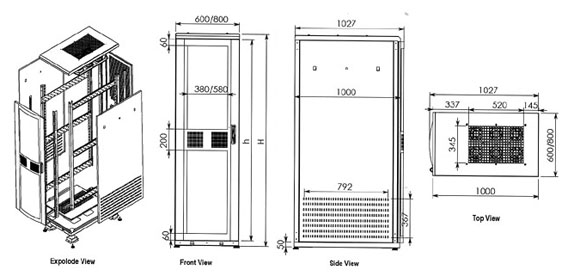

Complete Range of Dimensions
Width=600mm. Depth=1000mm.42U
Width=600mm. Depth=1000mm.36U
Width=600mm. Depth=1000mm.26U
Width=800mm. Depth=1000mm.42U
800kg. Load capacity
 Infinitely adjustable rails
Generous cable access
Easy mounting, fast assembly
Sturdy steel construction
Excellent cooling performance and optimal ventilation to deliver thermal protection.
Standard drawable balancing bars against tilt.
SX Range server cabinets are an exceptionally rugged and strong cabinet enabling it to be used for server system applications.
The SX Range is highly-configurable to the end-users requirements and provides unique features to benefit system designers, installers and network managers. Can be delivered as a single enclosure with side panels or as a side by side cabinet with no side panels.
The rigidly welded frame construction can be dismantled and assembles easily without any special tools. Thus, narrow doors, staircases and lifts are no problem.
STANDARDS
ISO9001:2000
19” mounting to IEC 297-1
Overall cabinet dimensions to IEC 297-2
COMPLIANCES:
UL AND cUL
FEATURES:
Easy to access:
Front door：
It is with two (2) options.
1- Perforated sheet steel reinforced with complete metal frame, rounded provide perfect air-conditioning of the cabinet with turning lever lock and three point locking.
2- Full-length Perspex door reinforced with metal frame integral locking mechanism and three point locking. Side edges are perforated for excellent air-conditioning.
Side Doors：
lockable, removable complete with slam latches and locks.
Rear Door：
lockable, removable with lock. Rear door is vented for perfect air-conditioning. Secure, locking front and back doors with spring loaded hinges offer best accessibility even when connecting the cabinets. The door hinge is easily swapped from one side to the other.
All giving you 4-way access to equipment. Front and rear door can be replaced that gives you flexibility for different installations.
Cable access
Multiple cable entry points provide maximum versatility. There is a brush on the rear panel that can be positioned on top or bottom (brush entry available on racks of 36U and above)
Construction
Rigid welded frame construction in steel sheet rapidly dismantled per 4 screw per corner. Corner of bases have welded sockets on each corner that tightly fixed into the columns gives maximum stability.
Frames are made with 24-fold design for increased stability.
Vented top cover with built-in space for available top mount cooling system. Besides that, it causes a chimney effect to provide passive transportation via convection.
19” mounting angles (front/2ea. And back/2ea) allow for flexible configuration and adjustable in depth. C-rails (3ea.left +3ea.right) increase the stability of equipment mounting and fixing shelves in 4 points.
Leveling feet is included as a standard feature.
Extensive range of accessories. |
