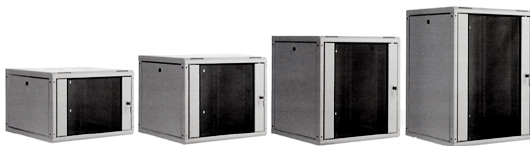

TX Range
The TX Range cabinets provide an economic solution cabling installations. This series is a range of wall mounted and/or free standing enclosures used in offices for horizontal segments where a reduced amount of U height is required. Again the aesthetics creating a pleasing and professional look.
Attention to styling with light grey Ral7035 with a smoked glass door reinforced with vertical left and right metal frames mean that cabinets can be deployed in the most demanding of office environments where looks really matter. Front door frames are available with decorative trim or customized as orange blue, green, light blue, red.
Optimal mounting, hinging and panel mounting arrangements create a variety of equipment mounting and access arrangements. This allows the TX Range to be used in almost all locations. Completely standard TX Range wall mounting cabinet is delivered as a single enclosure and assembled.
Wall mounted cabinets could be used as free standing by using accessories castor or leveling feet under a table or in any environment.
STANDARDS
 ISO9001:2000
19” mounting to IEC 297-1
Overall cabinet dimensions to IEC 297-2
COMPLIANCES:
UL AND cU
FEATURES
Easy to access
Front door
features a full-length smoked and shatterproof glass door with decorative accent trim reinforced with left/right metal frames and integral locking mechanism.
Side doors
lockable, removable complete with locks.
Rear door
mechanically lockable, removable, it is used as mounting plate at the same time. When mounting the enclosure, rear door is removed and mounted directly to wall and enclosure plug-in to the rear door. Its benefits that, straight on wall, fast installation, low manpower, save time and cost-effective solution.
All giving you 4-way access to equipment.
Cable access Multiple cable entry points on top(1ea) and bottom(1ea), provide maximum versatility. There is a rubber edge sliding cover mechanism that protects and fix the cables. On the rear door, there is also a cable entry hole closed with cover. When it is used, it is replaced with one of top/bottom rubber edge sliding cover mechanism.
Construction Rigid welded frame construction is in steel sheet. Corner of bases have welded sockets one each corner that are tightly fixed into the columns giving maximum stability.
Frames are made with 24-fold design for increased stability.
Vented top cover provides passive heat transportation via convection. There are vented fan holes suitable for cooling unit. (See accessories).
19” mounting angles (front/2ea) allow for flexible configuration and adjustable in depth. Extensive range of accessories.
|
