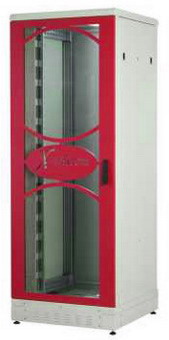

DIAMOND Line racks offer our customers the exciting option of custimizing the appearance of the racks to match their corporate logo and color scheme. This high-end product can be made to meet the most exacting specifications. Doors are laser etched and cut in the shape chosen, then powder coated in one of a rainbow of colors. When appearance plays a role hand-in-hand with functionality, Exclusive Line racks are the answer.
DIAMOND Line racks include the following features:
 Sleek cable management design-two full-length data channels (one on each side) widthsnap closuredoors are standard sliding data management channels are optional
Front and rear doors are reversible-allowing you to shoose whether cable management is in the front of back of the rack door has a triple locking mechanism for added security, with a padded handle
Design your own personal front door or choose from one of our exciting options
Side panels have snap closures and locks, providing fourway access to equipment
Multiple cable entry points provide maximum versatility. There are two brush openings on the bottom, one sliding access panel on the bottom, and a brush entry on the rear panel that can be positioned on top or bottom
Frames are made with a 24-fold design for increased stability
Vented top panel
Leveling feet as a standard feature
Adjustable front and back mounting rails allow for flexible configurations
Available in a rainbow of colors or select your own custom color
CUSTOMIZE YOUR CABINET!
 |
| |
|
|
|
|
|
| Option 1 |
Option 2 |
Option 3 |
Option 4 |
Option 5
Create your Own Design |
|
Countless features ...
The Diamond combines aesthetic and technic as one. The Diamond gives you a flexibility to make your own front door design, with your favorite colour choice, that makes you different and provides you and your company countless combinations. The harmonious and innovative design of the racks fits into every environment in your company. The Diamond is designed for the dynamicand modern companies, forms a harmony with human beings and interior.when you wish to present your company in a modern, efficient and beatiful environment, chooce Diamond. Smart cable management system provides you professional look and solutions.
Aesthetic
Secure
Modern
Functional
Professional
Impressive
Attractive
Strong
Stable
All inclusive....
STANDARDS
ISO9001:2000
19" mounting to IEC 297-1
Overall cabinet dimensions to IEC 297-2
COMPLIANCES
UL and CUL
NOTE:
Please define your colour with your order. ·Black-RaI9005, White-RaI7035". Unless noted otherwise it is delivered as Black-RaI9005.
width= 600mm. depth= 600mm. |
| ORDER NO. |
U
(44.45mm) |
H
inside height (mm) |
H
Outside Height (mm) |
DIA32U66 |
32 |
1454,50 |
1554,50 |
DIA42U66 |
42 |
1899,00 |
1999,00 |
width= 600mm. depth= 800mm. |
| ORDER NO. |
U
(44.45mm) |
H
inside height (mm) |
H
Outside Height (mm) |
DIA32U66 |
32 |
1454,50 |
1554,50 |
DIA42U66 |
42 |
1899,00 |
1999,00 |
width= 800mm. depth= 800mm. |
| ORDER NO. |
U
(44.45mm) |
H
inside height (mm) |
H
Outside Height (mm) |
DIA32U88 |
32 |
1454,50 |
1554,50 |
DIA42U88 |
42 |
1899,00 |
1999,00 |
NOTE :
Please define your colour with your order. Black-RaI9005, White-RaI7035". Unless noted otherwise it is delivered as Black-RaI9005.
|
