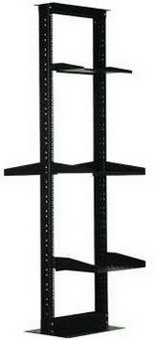

The SYSTEM rack are designed for mounting of patch panels and shelf mounting equipments. II offers improved cable management, provide more space for networking equipments, fast assembly, and sturdy construction with each U-frame 2.5mm. Bases are moulded steel casting, and brings more stabilized heavy duly structure.
FEATURES
 The SYSTEM rack are designed for mounting of patch panels and shelf mounting equipments. II offers improved cable management, provide more space for networking equipments, fast assembly, and sturdy construction with each U-frame 2.5mm. Bases are moulded steel casting, and brings more stabilized heavy duly structure.
-This U-frame can also be manufactured with aluminium alloy-
26U U-frames(left+right)=7.5kg.
36U U-frames(left+right)=10.2kg.
42U U-frames(left+right)=11.8kg.
48U U-frames(left+right)=13kg.
Each base unit is made from 7-6mm. casted steel and upper L connections are 5mm. casted steel for more stabilization.
Since the base and upper L parts are casted, it is designed for self璱nterlocking of all parts.
Bases (front and rear)=13kg.
Upper L parts (front and rear)=4kg.
Each side of U-frame is punched in different shapes.
One side is punched with 9.5x9.5mm. square holes that allow to use with M5/M6 caged nuts.
Other side of U-frame is punched with m5 round holes that allow to use M6 self-tapping screws.
Surface Treatment: Fosfat coating
Painting: Ra19005-Black / Ral7035 light gray
Shipment Configuration:
2ea. U-frames (in defined U heights, 26U,36U,42U or 47U)
2ea. Base plates
2ea. Upper connection L parts
30ea. M6 self-tapping screws
19" SYSTEMRACK |
| ORDER NO. |
U
(44.45mm) |
H
inside height (mm) |
H
outside height (mm) |
flat package
dimension
(wxdxh)
|
LR26U |
26 |
1157 / 45,55 |
1290 / 50,78 |
1200*180*150 |
LR36U |
36 |
1601 / 63 |
1734 / 68,26 |
1650*180*150 |
| LR42U |
42 |
1868 / 73,54 |
2001 / 87,5 |
1950*180*150 |
| LR48U |
48 |
2134,45 / 75,29 |
2045,45 / 80,52 |
2200*180*150 |
|
