PROline

Download Specifications

The PROline cabinets provide an economic solution cabling installations.

This series is a range of wall mounted or/and free standing enclosures used in offices for horizantal segments where a reduced amount of U height is required.

Again the aesthetics creating a pleasing and professional look.

Attention to styling with light gray Ral7035 with left and right metal frames mean that cabinets can be deployed in the most demanding of office environments when looks really matter. Front door frames is available with decorative trim or customized as orange, blue, green, light blue, red. Optimal mounting, hinging and panel mounting arrangements create a variety of equipment mounting an access arrangements. This allow the PROline to be used in almost all locations. Completely standart PROline wall mounting cabinet is delivered as a single eclosure and assembled.

Wall mounted sabinets could be used as free standing by using accessories castor or levelling feet under a table or in any enviroment.

STANDARDS : ISO9001:2000
19" mounting to IEC 297-1
Overall cabinet dimensions to IEC 297-2

COMPLIANCES: ULand cUL . LMS Data products are registered in USA with SETT bandname.


FEATURES

Easy to access
Front door features a full-Ienght smoked and shatterproof glass door with decorative accent trim reinforced with lefVright metal rames and integral locking mechanism.
Side doors; lockable, removable complete with a locks.
Rear door; mechannically lockable, removable it is used as mounting plate at the same time. When mounting the enclosure, rear door is removed and mounted directly to wall and enclosure plug-in to the rear door. It's benefits that, straight on wall, fast installation, low manpower, save time and cost-effective solution. All giving you 4-way access to equipment.
Multiple cable entry points on top (1 ea) and bottom(1 ea), provide maximum versatility. There is a rubberedge sliding cover mechanism that protects and fix the cables. On the rear door, there is also a cable entry hole closed with cover. When it is used, it is replaced with on of top/bottom rubber edge sliding cover mechanism.
Construction
Rigid welded frame construction is in steel sheet. Corner of bases have welded sockets on each corner that tightly fixed into the clumns gives maximum stability.
Frames are made with 24-fold design for increased stability.
Vented top cover provide passive heat transportation via convection. There are vented fan holes suitable for cooling unit. (see accessories)
19" mounting angles (front/2ea.) allow for fleible configuration and adjustable in depth. Extensive range of accessories.
High stock availability for standard products
Easy, straight, fast installation, low manpower

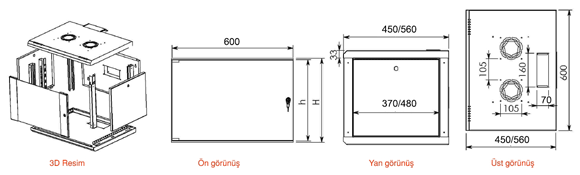

3 Different Depths
Depth=450mm.
Depth=560mm.
Depth=(110+450)mm. Double section.

5 different height
7U, 9U, 12U, 16U,20U

Double Sectioned Cabinets (110+450) mm. : It allows for maintenance and installation from back. Easy to access when openning 2nd. section of the cabinet. Because of heavy duty hinges, cabinet openning is 180degree and lockable
Stand alone application : All PROLINE cabinets can be used as stand alone by using castor group or with levelling feet. (please see accessories for levelling feet and castor group) It is gives an advantage to use under table or narrow places.
Easy to mount on wall : All PROLINE cabinets rear service door is removable. It is removed easily and one people enough to sign, drill and fix on the wall. After than, cabinet is placed, hanged on this rear plate. It reduce labour costs and provide an excellent job for fixing.
Without hanging the cabinet on wall, the worker can do all it job and finish by sitting any place. Than it can be easily hanged on mounting plate/rear door.

NOTE : Standard colour is RAL7035 white. For different colour options, please call to sales department. Unless noted otherwise, it is shipped RAL7035.
